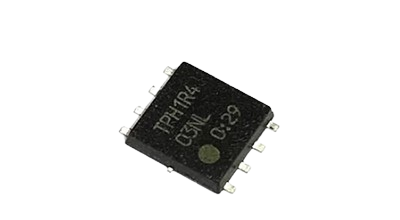

TPH1R403NL MOS

The TPH1R403NL Silicon N-channel MOSFET is primarily used for repairing and replacing MOSFET chips on hash boards.

Key Features:

1. Fast switching capabilities.
2. Low gate charge, with a typical value of 10.6 nC.
3. Minimal drain-source on-resistance, typically 1.7 mΩ at VGS of 4.5 V.
4. Maximum leakage current of 10 μA under a drain-source voltage of 30 V.
5. Operates in enhancement mode with a threshold voltage ranging from 1.3 to 2.3 V at a VDS of 10 V and ID of 0.5 mA.

Function: Antminer S19j S19jpro S19xp hash board replacement MOS chip
